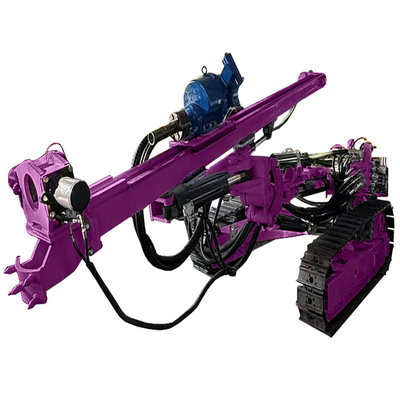

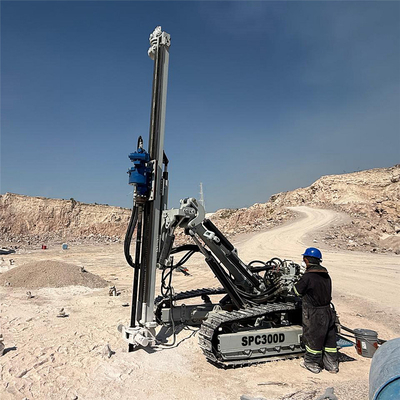

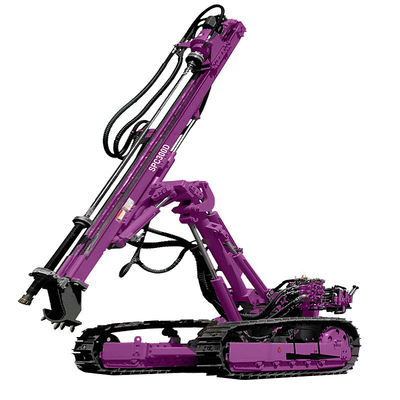

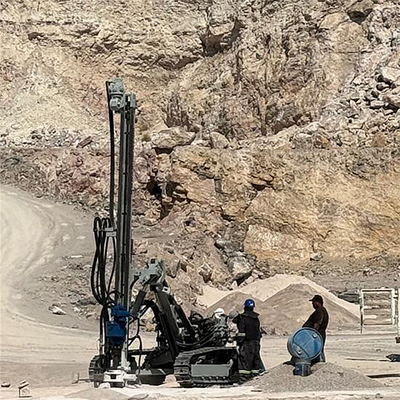

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment

1 комплект/комплектов
MOQ
negotiable
цена
Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Название продукта: буровая установка crawler
Мощность (Вт): 3.7kw
Тип мощности: Дизельное топливо
Глубина бурения: 30 метров
Диаметр бурения: 90-254 мм
Степеничность: 35°
Угол поворота: 13°
Количество воздуха: 15-25 м3/мин
Роторный вращающий момент: 2000 Nm
Потребление воздуха: 10,73 м3/мин
Рабочее давление: 2.5 мПа
Вместимость гидравлического бака: 18L
Скорость вращения: 70rpm
Максимальная тяга вперед: 11KN
Применение: Минирование, карьер, сверля отверстие взрыва, минирование и конструкция
Скорость движения: 3.5Km/h
Функция: Высокая сверля эффективность, конкурентоспособная цена
Размер ((l*w*h): 6100*2200*2105 мм
Вес: 5400 кг
Тип: Ротационная буровая установка
Выделить:

Borehole Drilling Equipment

,

3.7KW Borehole Drilling Equipment

,

Rotary Head Drilling Equipment
Основная информация
Место происхождения: Чжэцзян, Китай
Фирменное наименование: Sanrock
Сертификация: CE ISO 9001:2015
Номер модели: SPC300D Индивидуальный
Оплата и доставка Условия
Упаковывая детали: Обнаженная упаковка для буровой установки; Деревянная упаковка для запасных частей; Или по требовани
Время доставки: 18-25 рабочих дней
Условия оплаты: Аккредитив, Документы против акцепта, Документы против платежа, Банковский перевод, Western Union, M
Поставка способности: 3000 комплектов в месяц
Характер продукции

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 0

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 1Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 2Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 3

The split-type fully pneumatic down-the-hole drilling rig is a robust drilling system specifically designed for efficient rock drilling operations in remote or challenging environments. Featuring a modular design with separated air compressor and drilling components, this entirely compressed-air-powered equipment eliminates the need for hydraulic systems or electrical power sources. Utilizing high-pressure compressed air for both rock penetration and cuttings removal, it offers exceptional portability and rapid deployment capabilities. The system integrates a pneumatic hammer with tungsten carbide bit for effective rock fragmentation, while its separated configuration allows flexible transportation and quick assembly on-site. Ideal for mining exploration, geotechnical investigations, and construction projects in rugged terrains, this environmentally friendly drilling solution ensures reliable performance with reduced maintenance requirements and enhanced operational safety.





Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 4

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 5

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 6

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 7

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 8Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 9





Products Description
Product name
Drilling Rig
Model
SPC300D
SPC300T
Dimension
6100*2200*2105mm
5777*2210*1942mm
Min.Ground Clearance
250 mm
250mm
Weight
5400 kg
5400kg
Travel Speed
0-3.5 km/h
0-3.5km/h
Travel Motor Power
8.8 kW x2
8.8 kW x2
Gradeability
35°
35°
Swing Angle
13°
13°
Rotary Head Power
3.7kw
3.8kw
Rotary Torque
2000 Nm (at 0.7 MPa)
365N.m
Max.Rotary Speed
70rpm
380rpm
Air Consumption
1.73 m³/min at 0.3Mpa
16m³/min at 0.55Mpa
Max.Air Pressure
2.5MPa
1.0Mpa
Air Quantity
15-25 m3/min
15-25m³/min
Drill rod
φ76,φ89 X3000 mm
T38, T45*3050/3660mm
Hydraulic tank capacity
18L
55L
Feed stroke
3980 mm
3980mm
Maximum forward thrust
11KN
11KN
Sliding frame swing
left 47°/right 54°
Left 47°/Right 54°
Drill boom tilt
Up 46°/Down 23°
Up 46°/Down 23°
Drill boom swing
Left 40°/Rght 40°
Left 40°/Right 40°




Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 10

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 11

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 12Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 13Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 14

Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 15Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 16
Company Profile
Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 17
Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 18


Mobile Drilling Rig Rotary Head Power 3.7kw Small DTH Drill Rig Borehole Drilling Equipment 19
1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
