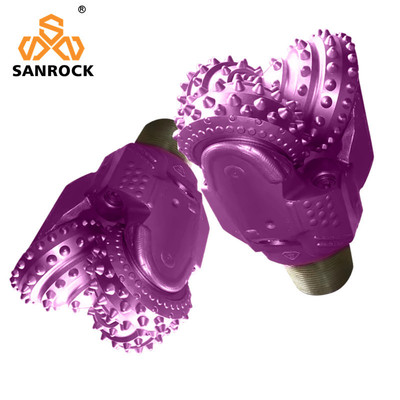

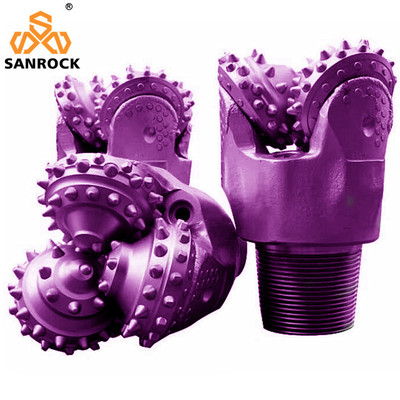

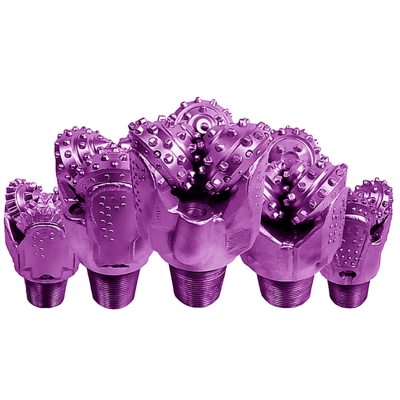

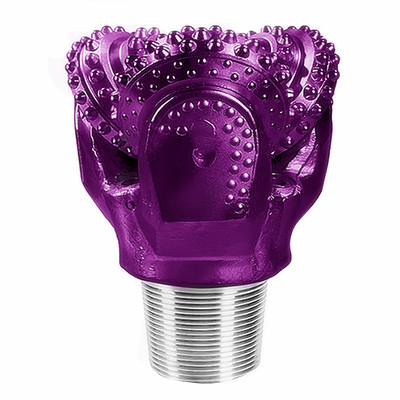

Factory Tricone Bit Rubber Sealed Roller Cone Bit Water Oil Gas Drilling Tricone Drill Bit

The roller cone bit, a widely used drilling tool in the oil and gas industry, offers several key advantages that make it highly effective for various drilling operations. Firstly, it excels in efficiency, particularly in soft to medium-hard formations, due to its rotating cones that crush and break rock with consistent force. This design ensures rapid penetration rates, reducing overall drilling time. Additionally, roller cone bits are renowned for their durability and robustness, capable of withstanding high pressures, temperatures, and abrasive conditions, which minimizes downtime and maintenance costs. Their adaptability allows them to handle diverse rock types, from shale to limestone, providing reliable performance across different geological settings. Moreover, these bits contribute to cost-effectiveness by offering a balance between initial investment and long-term productivity, often resulting in lower operational expenses. Overall, the roller cone bit's combination of efficiency, resilience, and versatility makes it an indispensable component in modern drilling applications.

Tricone bits are O-type rubber sealed journal bearing bits, matched with different cutting structures, which can adapt to extremely soft to extremely hard bottom layers.
The surface of the tooth palm bearing is overlaid with a wear-resistant alloy layer, and the tooth wheel bearing is silver plated, improving its load-bearing capacity and anti-bite ability.
The use of a new type of lubricating grease that can withstand high temperatures of 250 degrees and is resistant to wear has improved the high-temperature resistance of the sealing lubrication system.
The inset bit adopts high-strength and high toughness hard alloy teeth, which improves the impact resistance of the teeth and reduces the rate of tooth breakage.
Welding wear-resistant materials on the tooth surface of steel toothed drill bits to further improve the wear resistance of drill bits.

Products Description

Notes for the use of roller cone bits:
1 .Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.
2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.
3. Run in hole needs to be stable, avoid stress and prevent drilling.
4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.
5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, smalldrilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.
6. Determine the weight on bit and speed in combination with the actual conditions of the formation.
7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.
8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.
